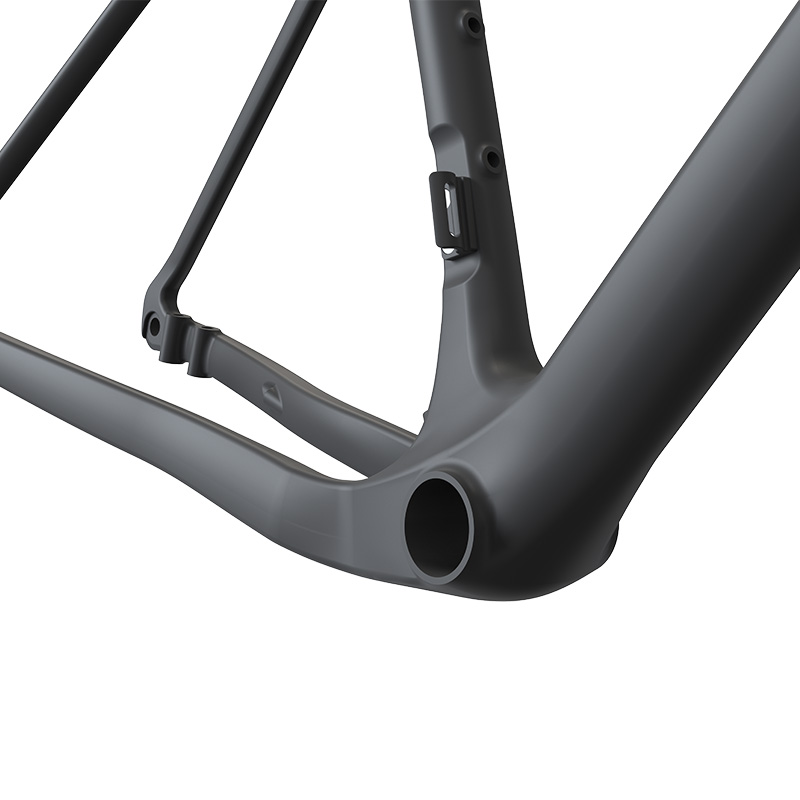

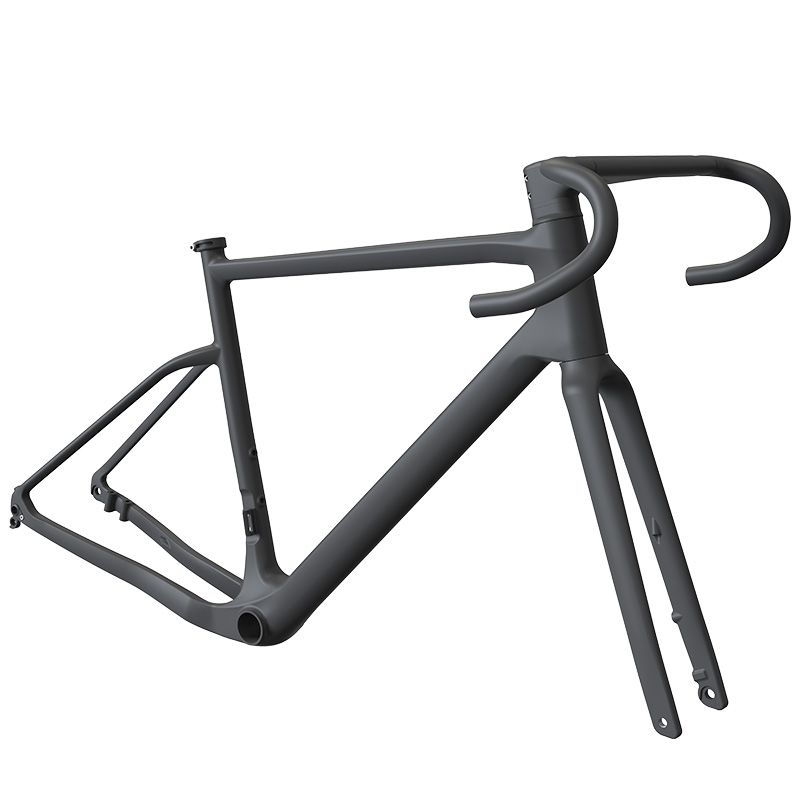

OEM ODM Brand Design Carbon Fiber Gravel Bike Frame

Product :
HY-B04
Size :
CHINA
Meterial :
OEM
Certification :
CE, ISO4210
MOQ for Custom Products :
1000
Payment :
PayPal, T/T
Color :
45-60 days for OEM orders

Inquire Now

Product Details

TECHNICAL SPECIFICATIONS

Material: Toray T700/T800 carbon fiber

Size: 460/480/500/530/560mm

Head tube: 1-1/2"

Fork model: DHY-F06

Weight: 950g

Seat Tube Diameter: 27.2mm

Dropout: Thru axle Front 12*100mm Rear 12*142mm

Max Tire Clearance: 700*50c

Brake Type: Flat Mount Disc Brake 140/160mm disc rotor

Cable Routing: Full Internal Routing

Max Chainring: Shimano GRX40T/48-31T

Test Standard: ISO4210

GEOMETRY

A. Seat tube height

B. Top tube length

C. Head tube height

D. Chain stay length

E. Head tube angle

F. Seat tube angle

G. Bottom bracket drop

H. Front wheel-bottom bracket

I. Fork built height

J. Wheelbase

K. Fork rake

SIZE	460	480	500	530	560
A	460	480	500	530	560
B	517	532	556	573	585
C	115	135	155	170	190
D	425	425	425	425	425
E	70.5	71	72.5	71.5	71.5
F	74.5	74.5	73.5	73.5	73.5
G	70	70	70	70	70
H	591	602	617	627	642
I	400	400	400	400	400
J	1006	1017	1032	1043	1057
K	50	50	50	50	45
REACH	367	377	385	395	403
STACK	539	560	579	595	614

FACTORY TOUR

bike frame manufacturers

ABOUT US

♦ Company Profile:

We have more than 20 years of experience in researching composite materials and producing related products, during which we have processed, developed, and manufactured composite materials products for domestic and foreign brands, such as bicycles, sports equipment, helmets, etc.

♦ About OEM:

Our company supports customization of carbon fiber + basalt fiber products, including design drawing, design, mold development, finished product processing, painting and spray painting, etc.

Functional materials research and development

For example: antistatic, heat insulation, flame retardant, anti-corrosion, fireproof and other carbon composite materials.

R&D and production of ultra-light composite material products

Suitable for sports equipment, bicycles, medical bed frames, protective equipment, aerospace and military industry, etc.

CUSTOMIZED SERVICES

Basaltmssolutions is a professional research and development manufacturer of carbon fiber, basalt fiber and hybrid composite materials, specializing in customization and R&D services.

Understanding Project Goals
We will work with you to develop a deep understanding of your project goals, including part requirements, key mechanical and structural performance goals, target costs, productivity plans, and timelines.
Develop a plan
We have a professional composite materials design team. We have successfully converted a variety of parts from traditional materials to composites in a variety of industries. Our team will work with you to develop designs using composite materials that provide the best value for your project and assist you in achieving your project goals.
Design Optimization
We will apply our expertise in composite design and production optimization to meet your needs, producing stronger, lighter and tougher parts that are cost-effectively manufactured in high volumes.
Large-scale manufacturing
After prototype design, testing and qualification, we will start producing parts according to project requirements, ensuring that the parts or products you need are provided on time and with high quality.
